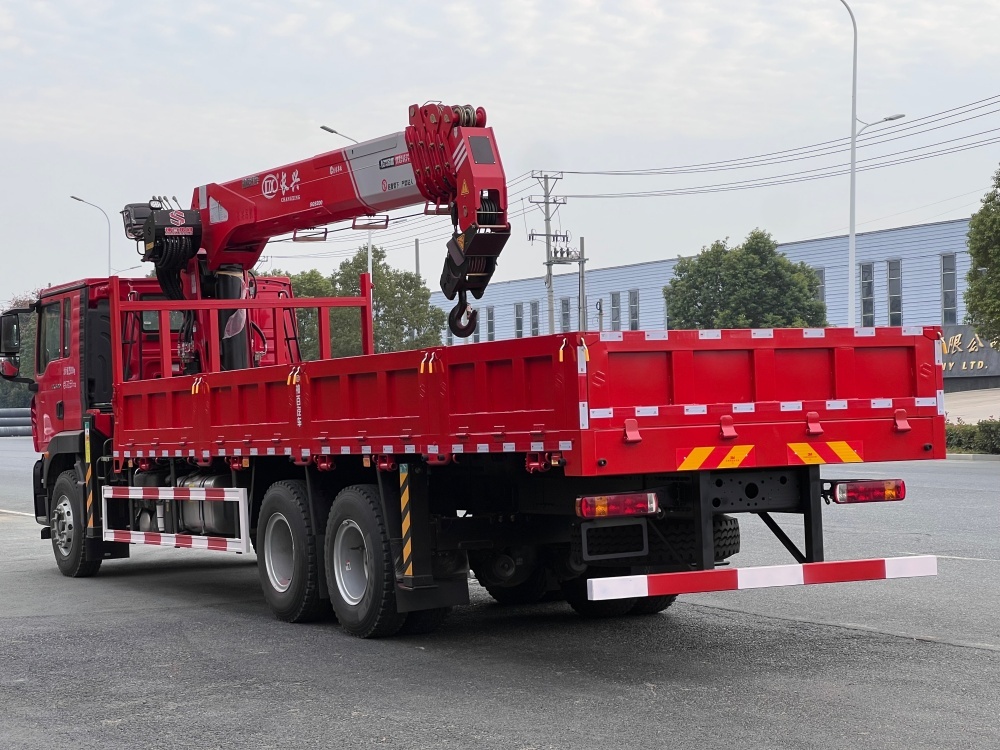

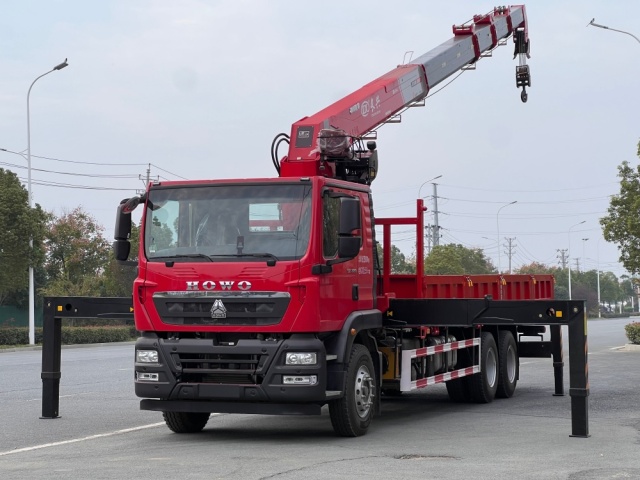

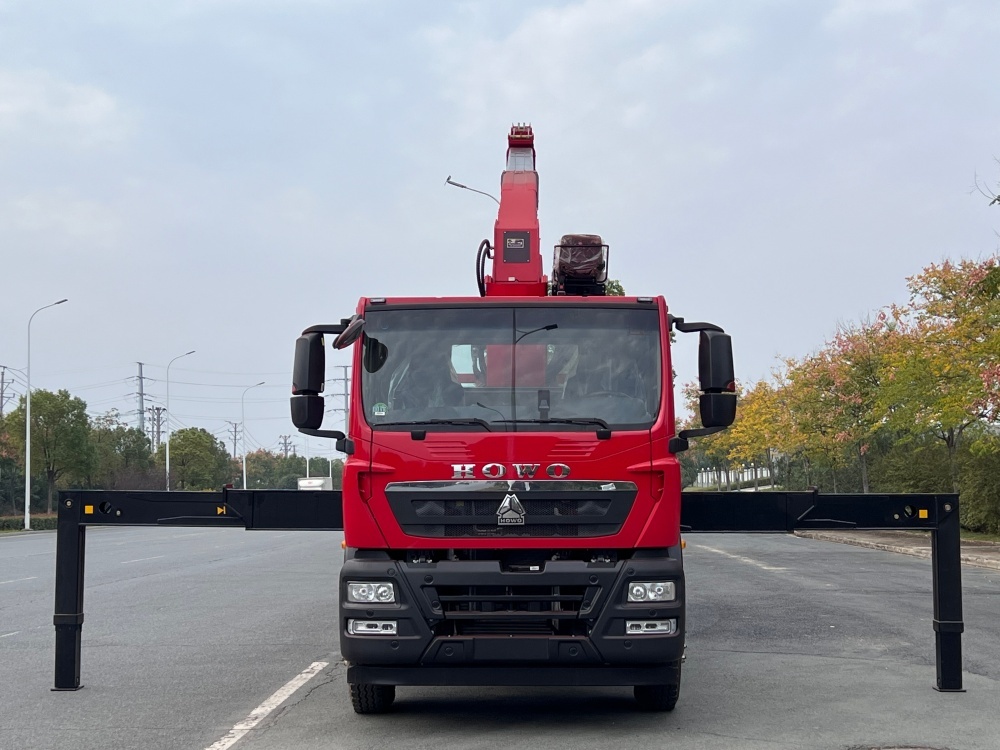

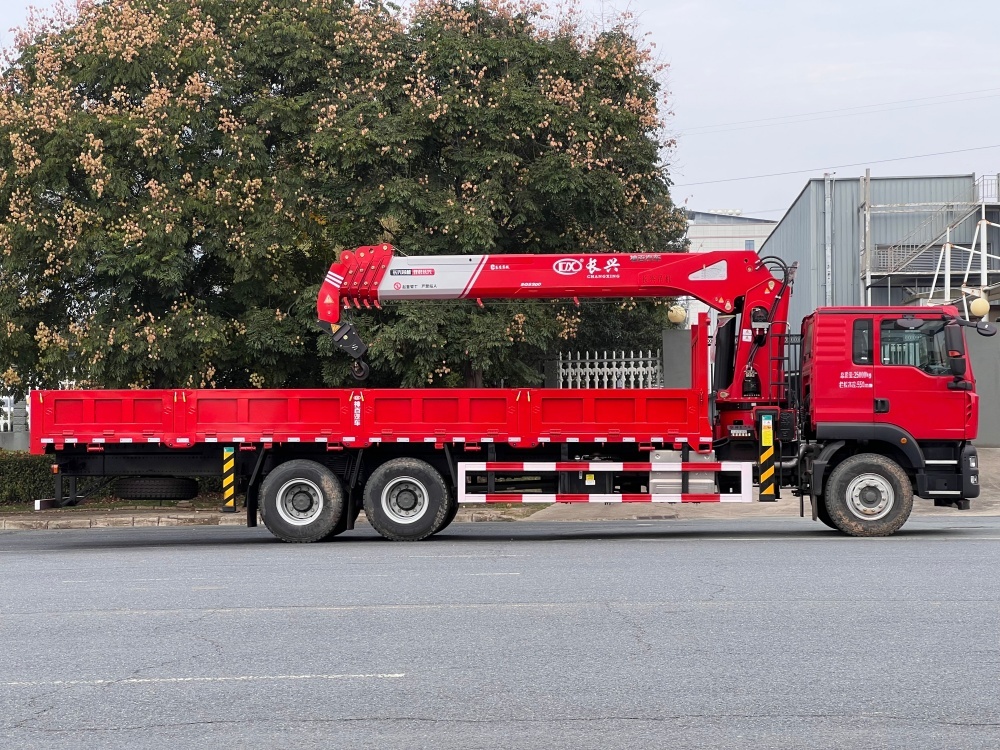

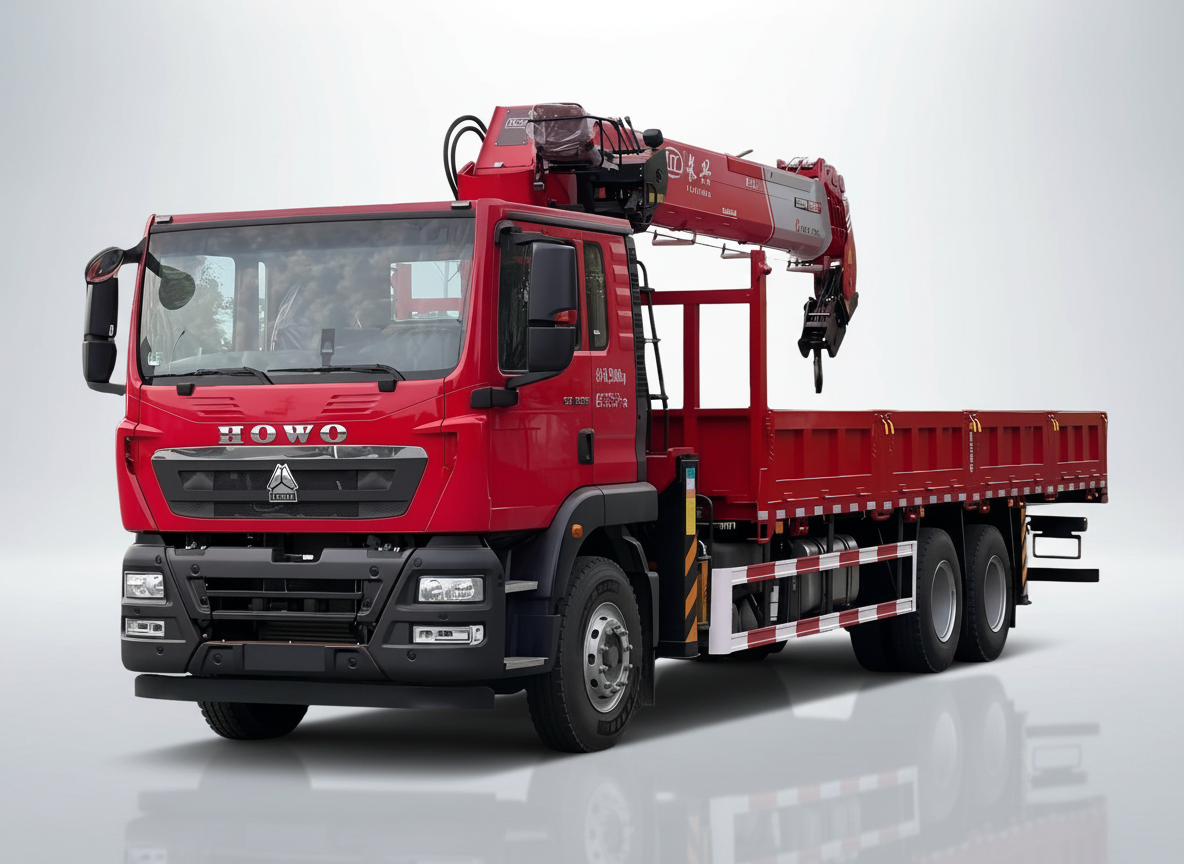

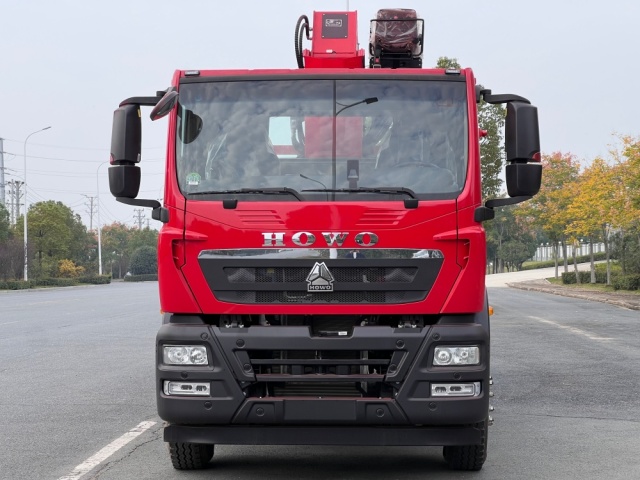

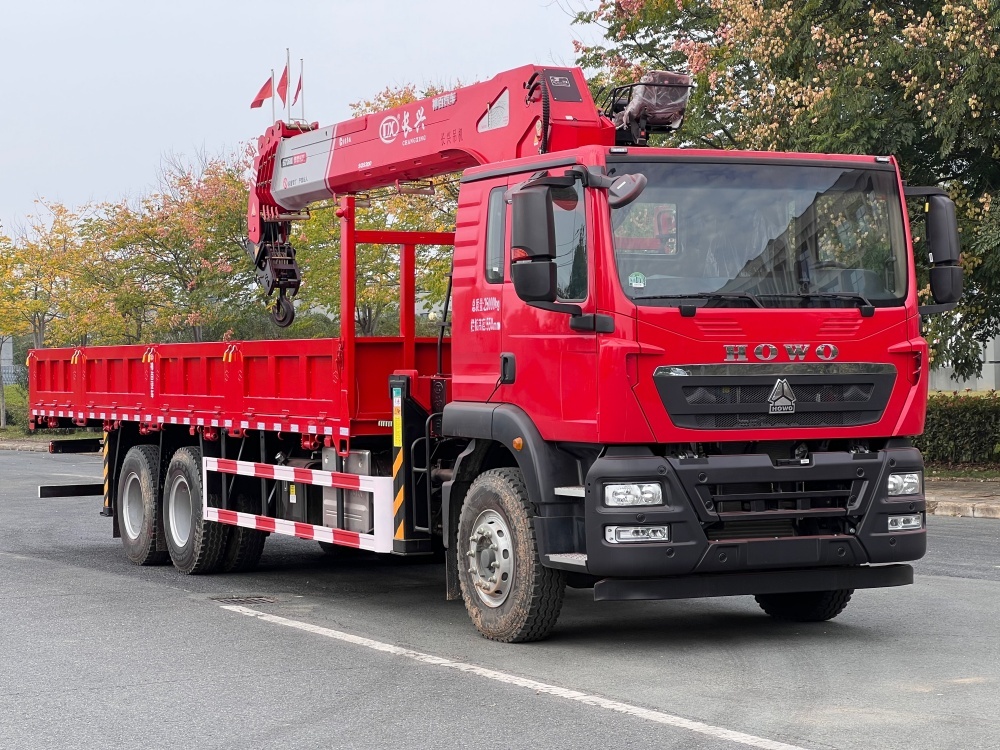

Sinotruk Howo 6x4 Heavy-Duty 12-Ton Truck-Mounted Crane with 5-Section Boom
• Multi-purpose vehicle: handles both transport and lifting operations simultaneously
• Reduces manual loading and unloading, boosting operational efficiency
• High-strength chassis suitable for heavy loads and demanding working conditions

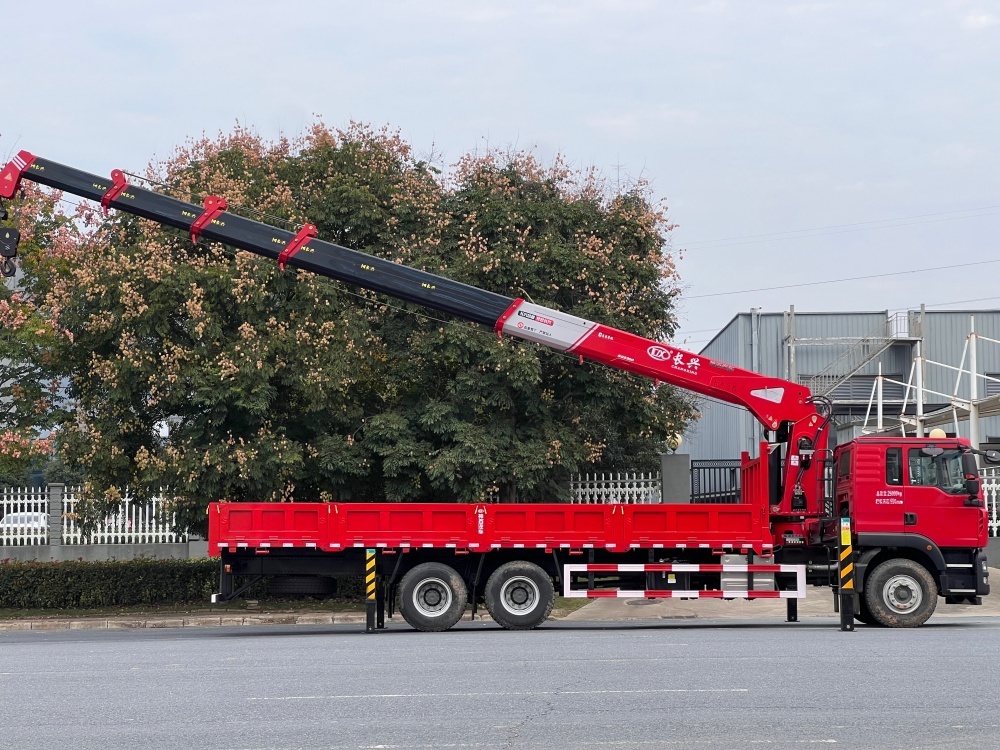

• Long-reach boom offers an extensive operating range
• Versatile cargo handling: one vehicle supports a wide range of business applications
• Customizable to specific operational needs for optimal vehicle suitability

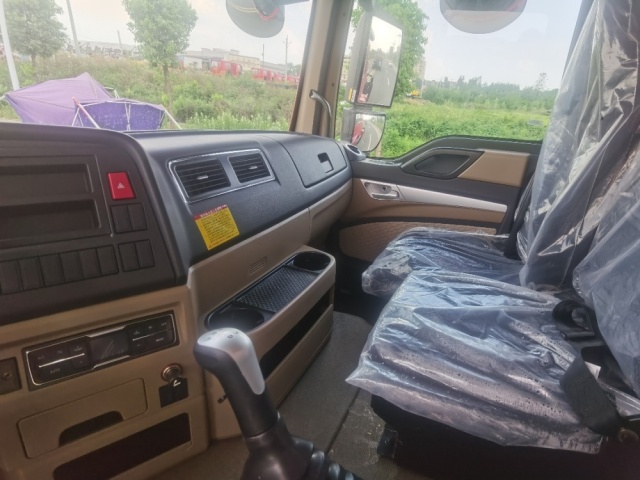

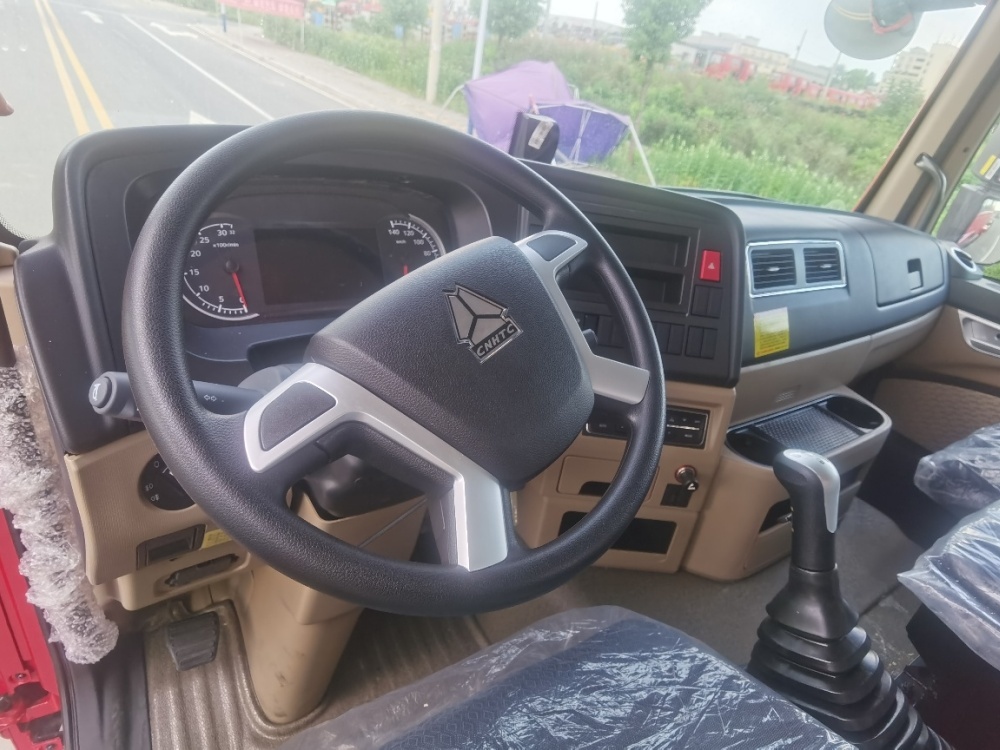

This vehicle adopts the Haowo TX5 heavy-duty chassis, equipped with a 320-horsepower engine and Haowo 9-speed synchronizer transmission. The engine box and axle are integrated for a seamless match. The power output is stable, and the overall adaptability of the vehicle is enhanced. The original German MAN technology TX-J four-point suspended cab is equipped with a multi-function steering wheel, aviation airbag shock-absorbing seats, and intelligent vehicle networking system, balancing driving comfort and safety. The three-layer high-strength frame, reinforced multi-plate springs, four horse bolts, and V-type thrust rod design improve the torsional resistance and body stability under heavy-load conditions; the 13-ton rear axle is equipped with three differential locks, enabling it to easily handle mountainous areas, muddy roads, and complex construction roads. The upper structure is equipped with a Changxing 12-ton five-section boom crane, with a maximum working radius of 19.9 meters and a lifting height of 22 meters. It adopts synchronous telescoping, dual pump confluence, dual-leg supports, and a transverse beam structure, featuring high lifting efficiency, stable operation, and is equipped with an 8.4-meter engineering cargo box, which can simultaneously meet the lifting and transportation needs of large equipment, building materials, and engineering supplies.
Supply Ability & Additional Information
Place of Origin
Hubei, China
Selling Units
Piece/Pieces
Productivity
1000 units/month
Transportation Mode
Ocean Shipping
Monthly Supply Capacity
300 units/month
Certifications
CCC, ISO, CE, EMARK
Loading Ports
Shanghai, Guangzhou, Wuhan
Payment Terms
L/C, T/T
Applicable Incoterms
FOB, CFR, CIF, EXW, FAS
• Brand:Sinotruk
• Engine Power(KW)：235
• Transmission:HW13709XSTC2 transmission
•Wheelbase：5800 + 1350 mm
• Number of axles:3
• Front axle/ rear axle (t)：0/12
•Number of tires：10
• Tire Specification：11.00R20 18PR
•Maximum lifting moment: 300 kN.m
• Maximum lifting weight: 12000 kg
• Maximum boom length: 18.5 m
• Maximum lifting height: 19 m
• Installation space：950 mm
• Rotation angle:360° full rotation
• Cranes' own weight：5850 kg
• Boom cross-sectional form:octagonal
•Leg structure form：double-chamber telescopic square legs
