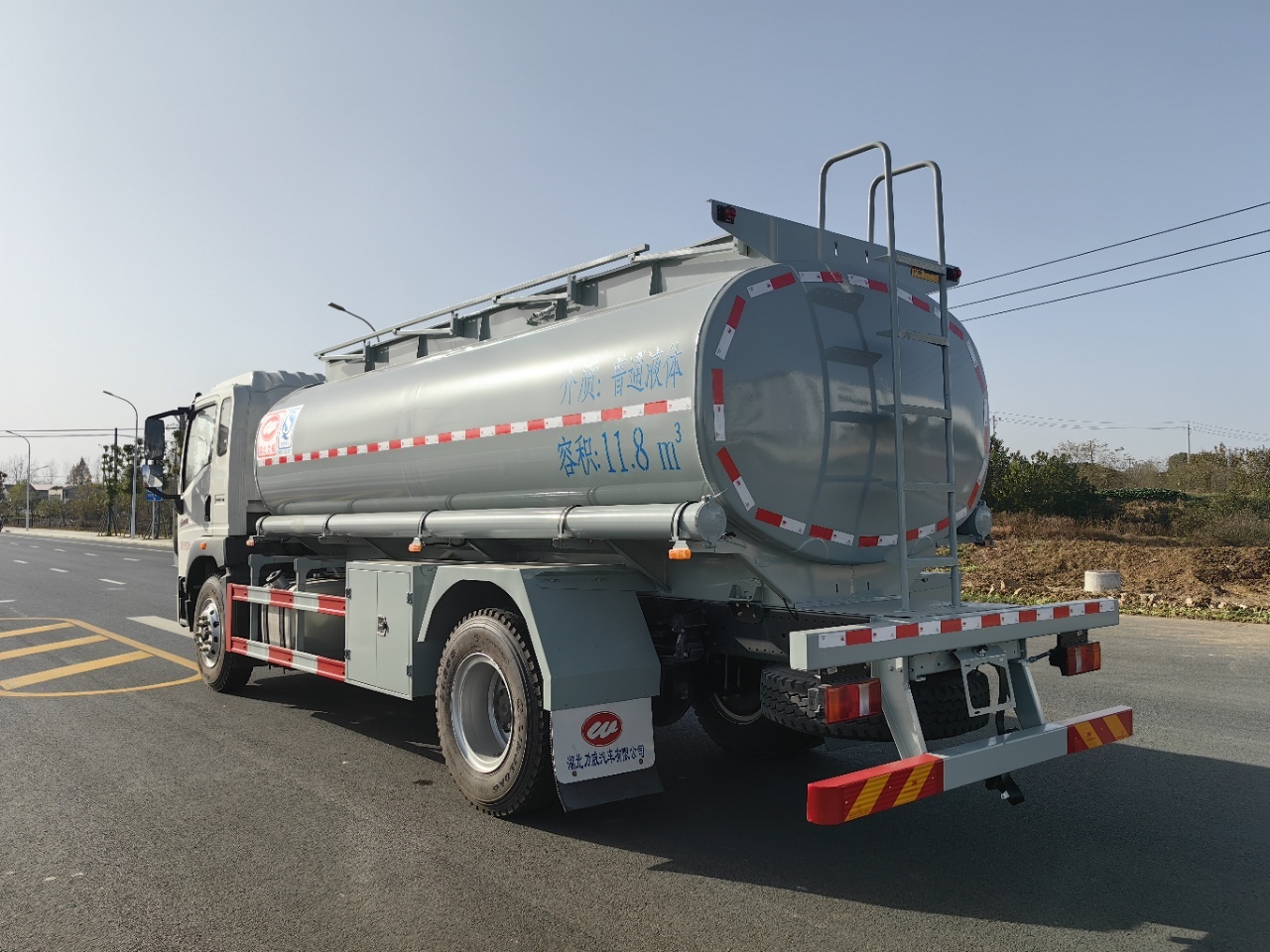

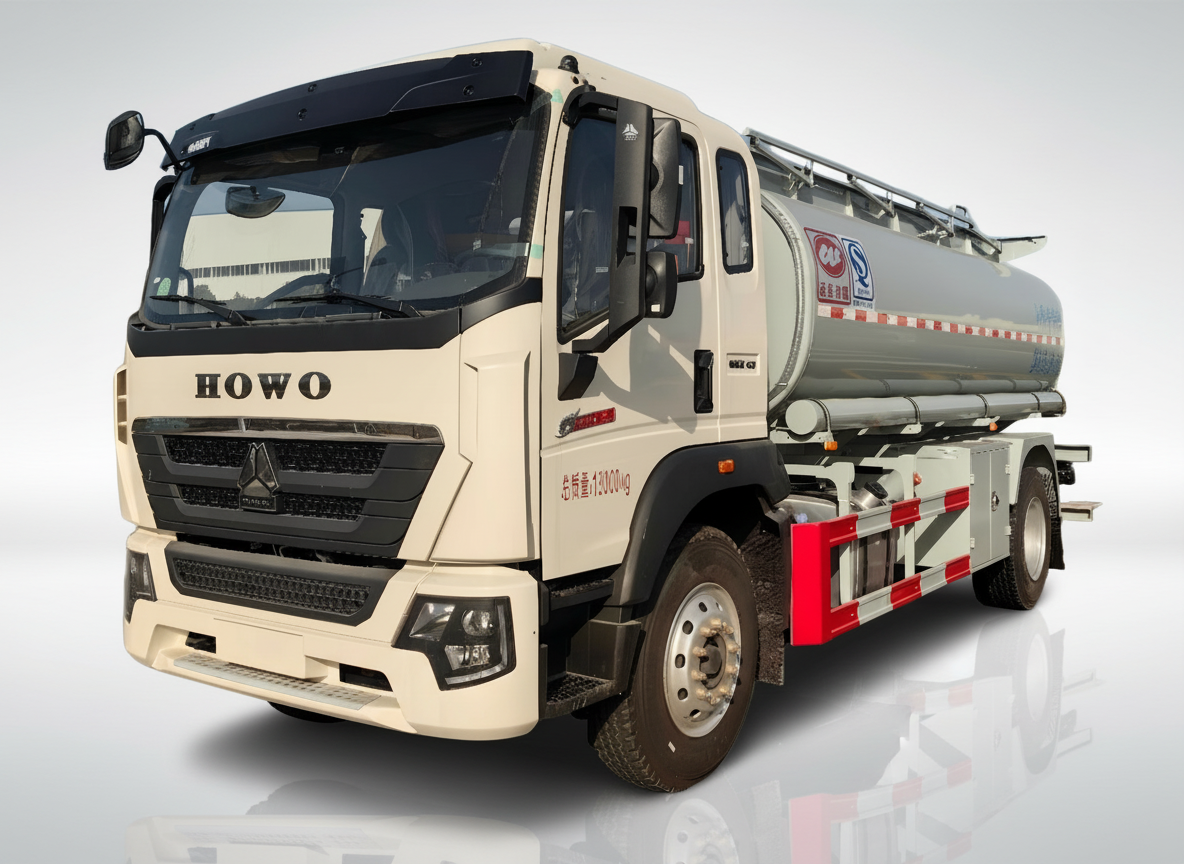

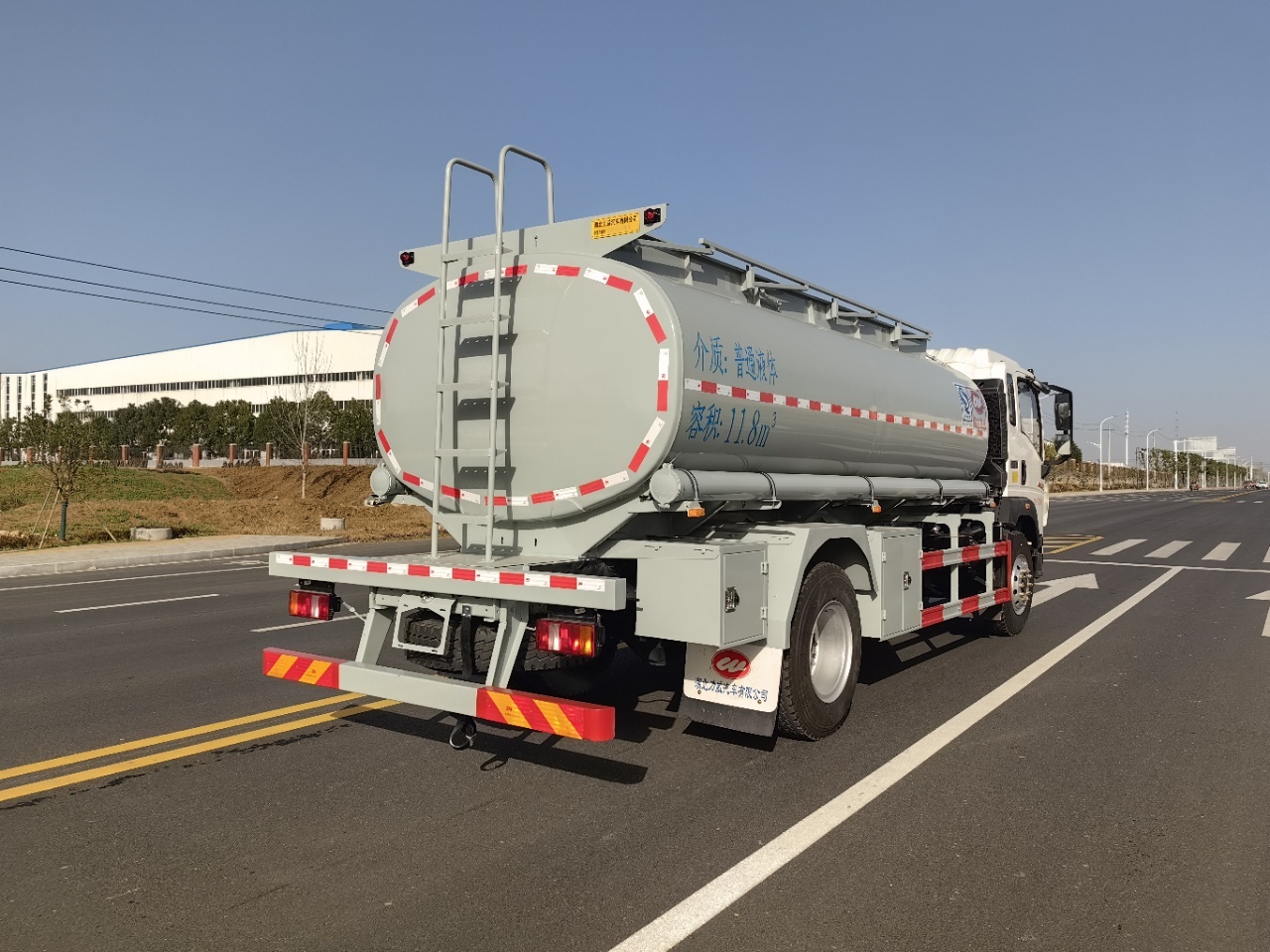

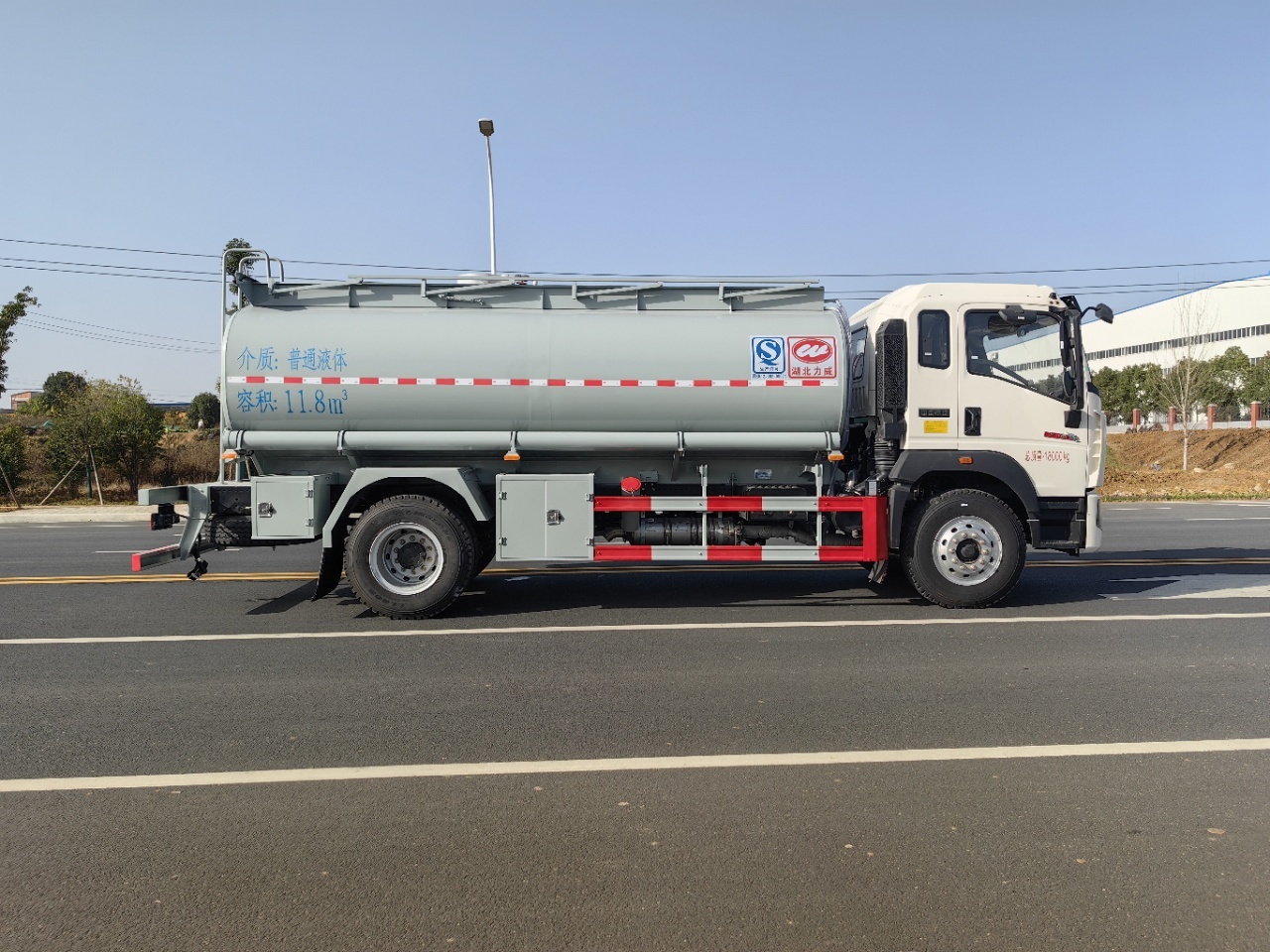

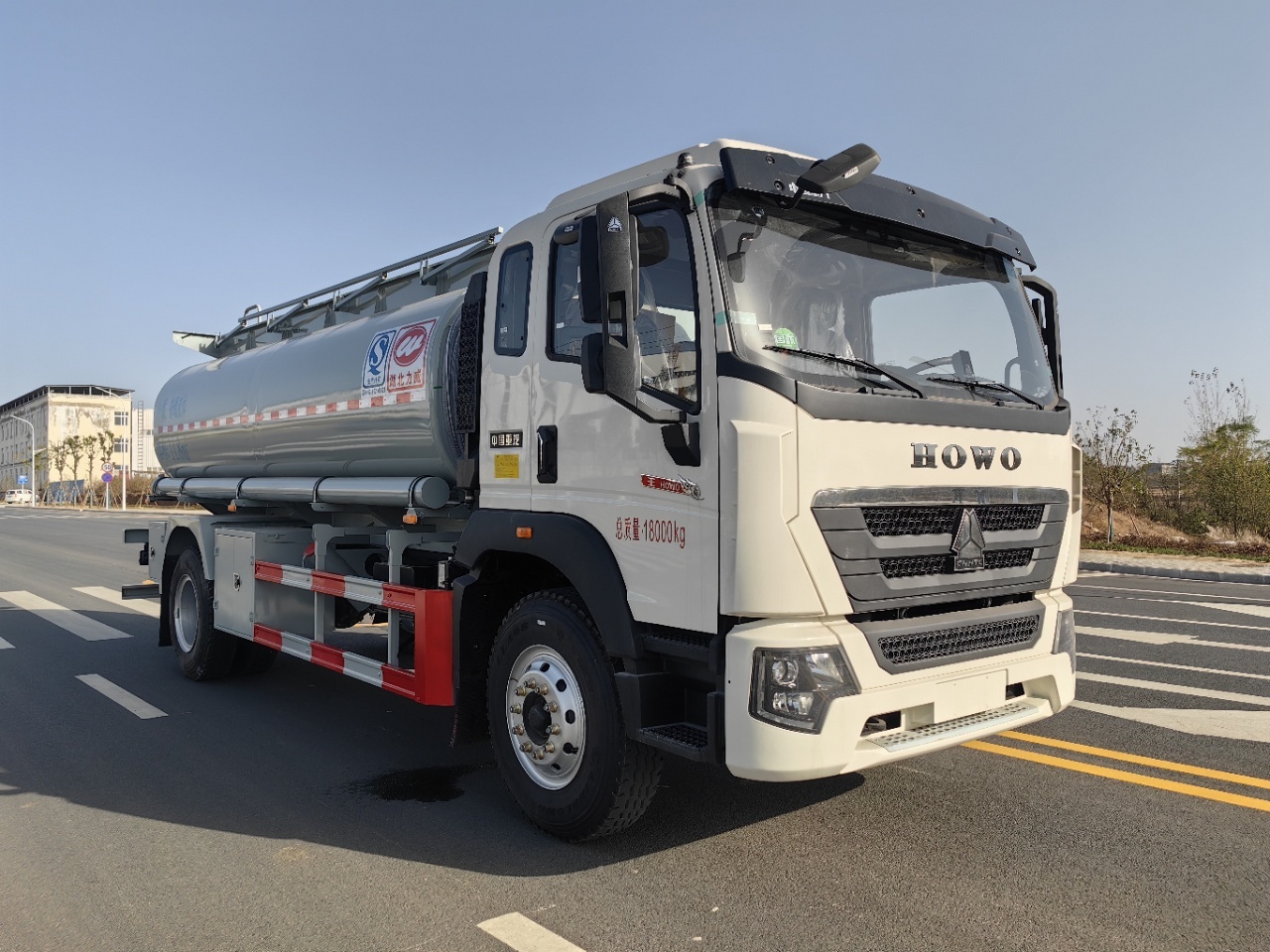

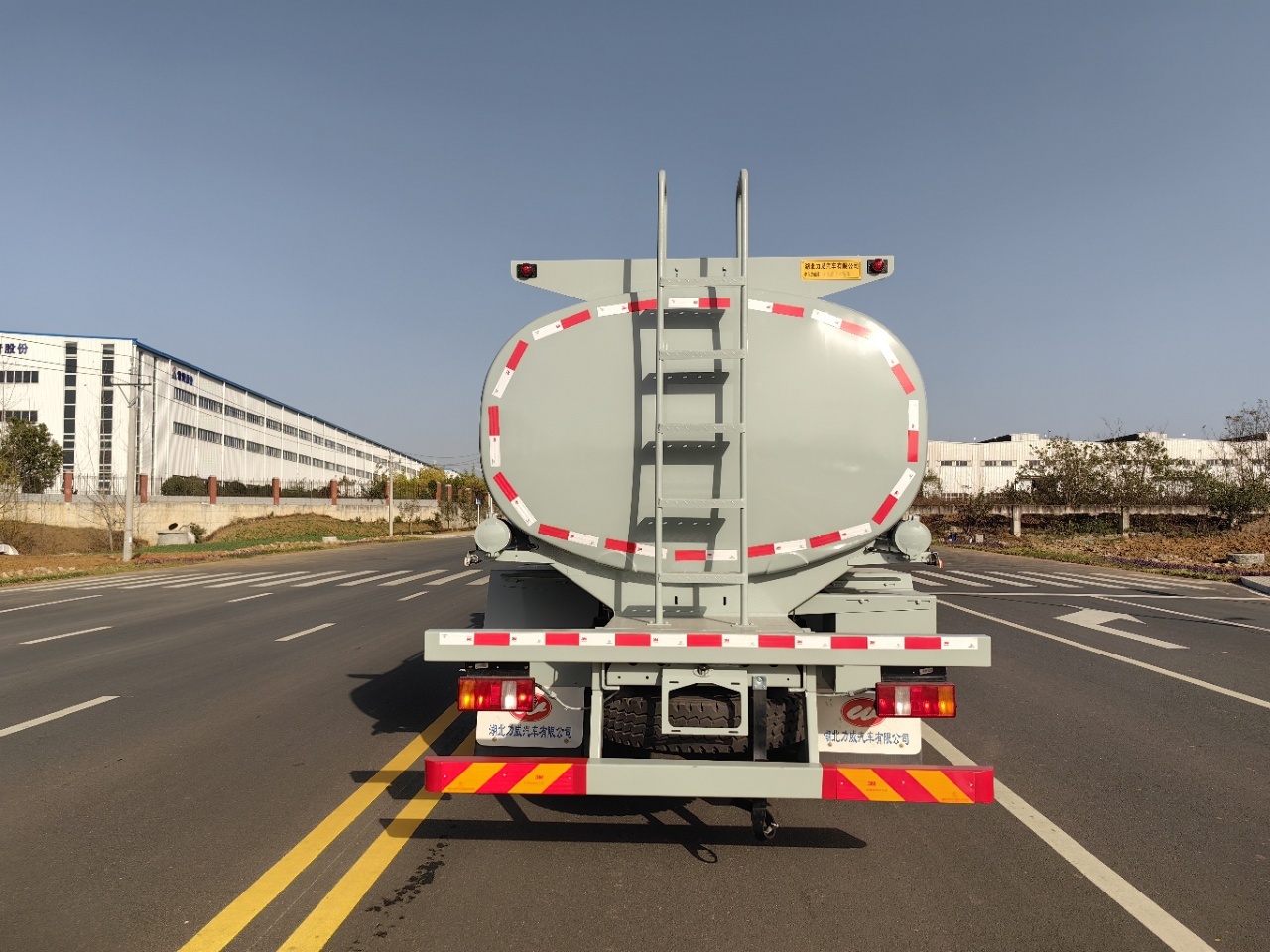

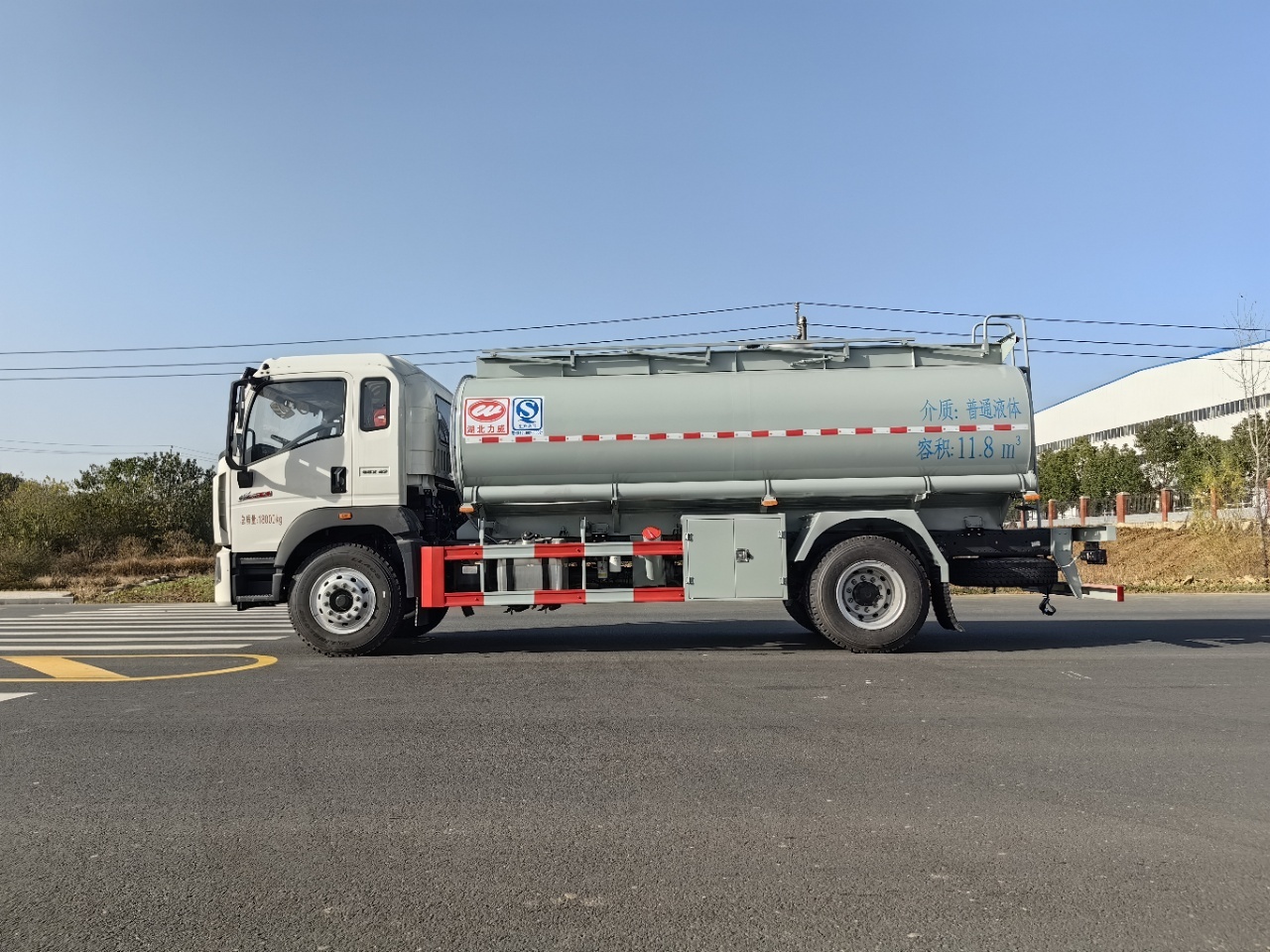

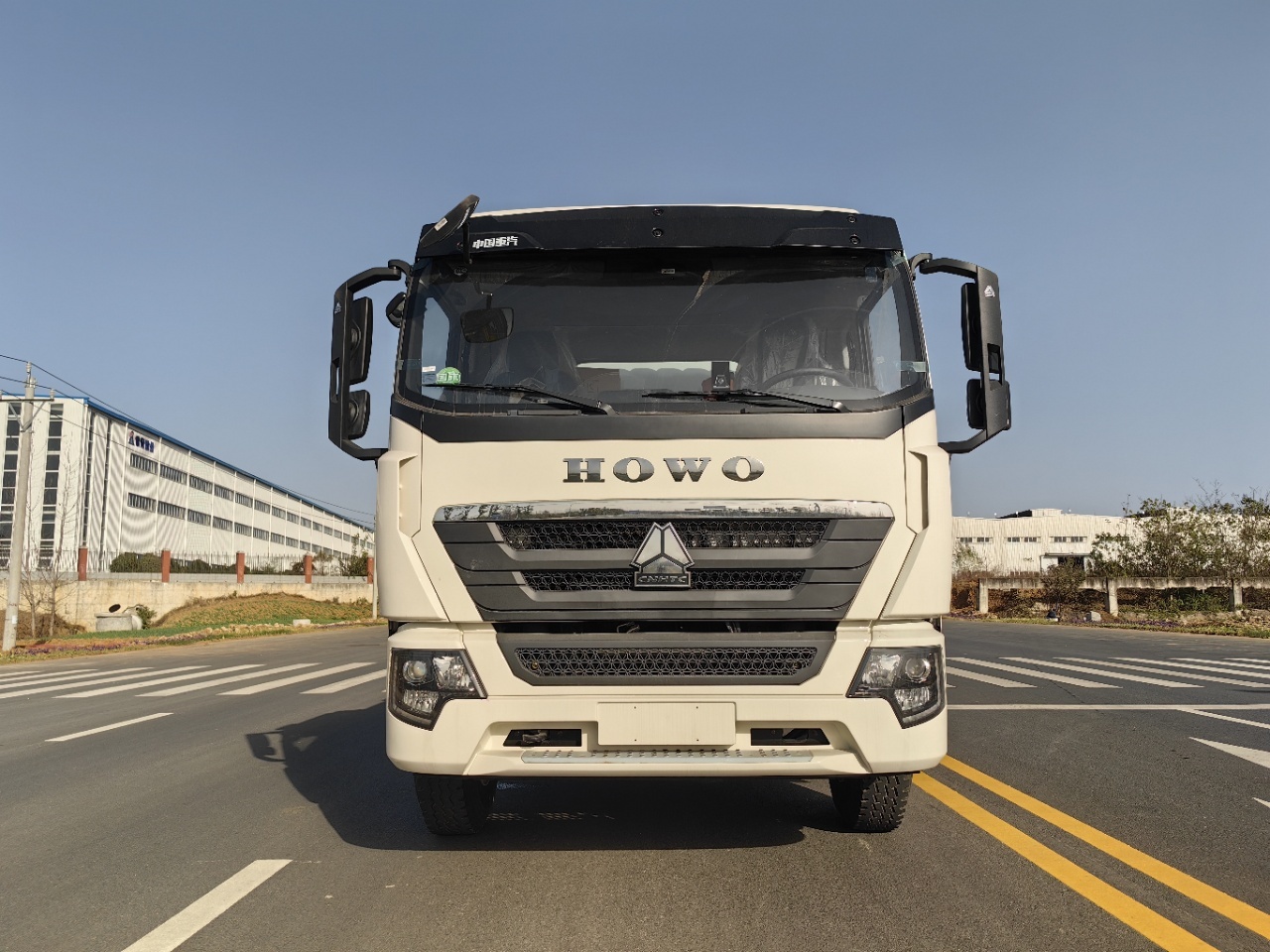

Sinotruk Howo G5x Series 10-ton Sulfuric Acid Chemical Tanker Truck
• Select tank materials based on the chemical medium to address corrosion and service life issues
• Utilize a sealed tank design combined with an emergency shut-off system to effectively mitigate leakage risks
• Incorporate baffle or compartmentalized structures to enhance vehicle stability during liquid transport
• Implement anti-static measures, pressure control, and specialized loading/unloading piping to improve safety during hazardous material operations
This vehicle utilizes a Sinotruk Howo G5X chassis specifically designed for hazardous materials transport, powered by a 240-horsepower Weichai engine and a Sinotruk 8-speed transmission. It features a 4.5-ton front axle, a 9-ton rear axle, a 250mm double-layer frame, and reinforced leaf springs, ensuring a balance of power, load-bearing capacity, and driving stability when carrying nearly 10 tons of liquid cargo. It effectively addresses common challenges in hazardous liquid transport, such as insufficient power under full load, significant shifts in the center of gravity, and the need for high reliability during long-distance hauls. The tank body features a steel-lined plastic design—comprising a Q235B carbon steel outer shell and a 16mm polyethylene (PE) inner liner—making it superior to standard carbon steel tanks for transporting corrosive liquids compatible with PE; this design minimizes tank wall corrosion, rust contamination, and the need for frequent maintenance. Internally, it is equipped with double-layer steel-lined plastic surge baffles to dampen liquid sloshing during braking and cornering, thereby enhancing driving stability. The tank utilizes a sub-frame design that is higher at the front and lower at the rear, incorporating a DN100 fluorine-lined master valve, a DN80 all-plastic discharge ball valve, and an under-frame discharge structure to facilitate rapid, centralized unloading and minimize residual liquid. Top-side features include an all-plastic manhole, a breather valve, movable guardrails, and anti-corrosion treatment; the vehicle also comes equipped with discharge hoses, a tool box, and two 8kg fire extinguishers. It is ideally suited for chemical enterprises and industrial raw material transporters that demand high standards for corrosion resistance, leak prevention, unloading efficiency, and safety in hazardous liquid transport.
