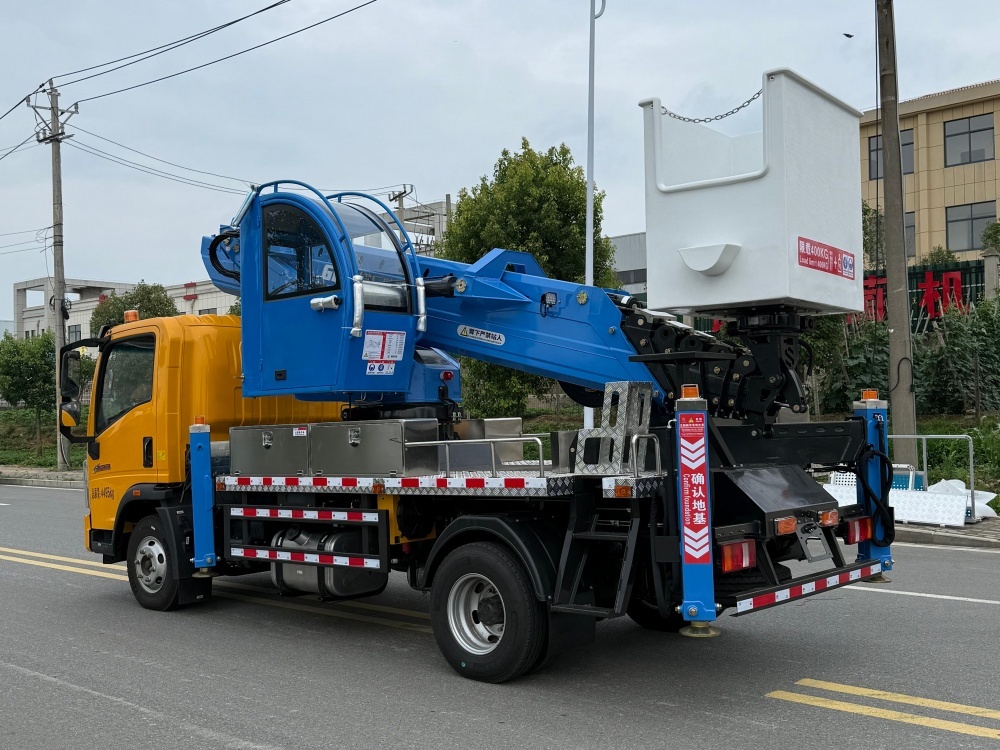

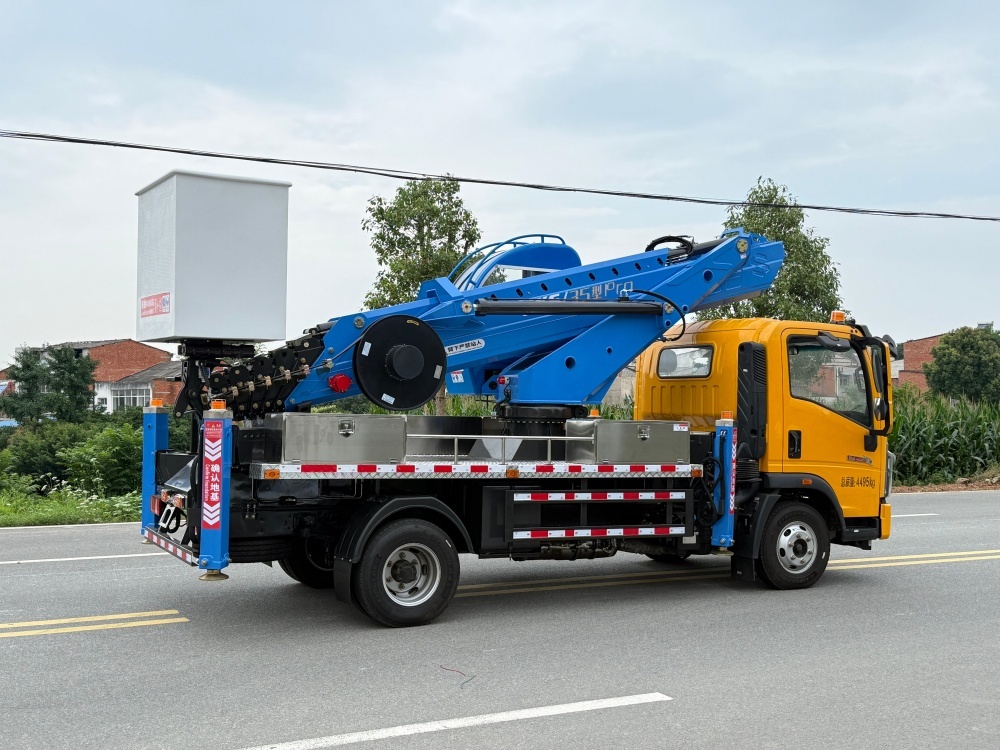

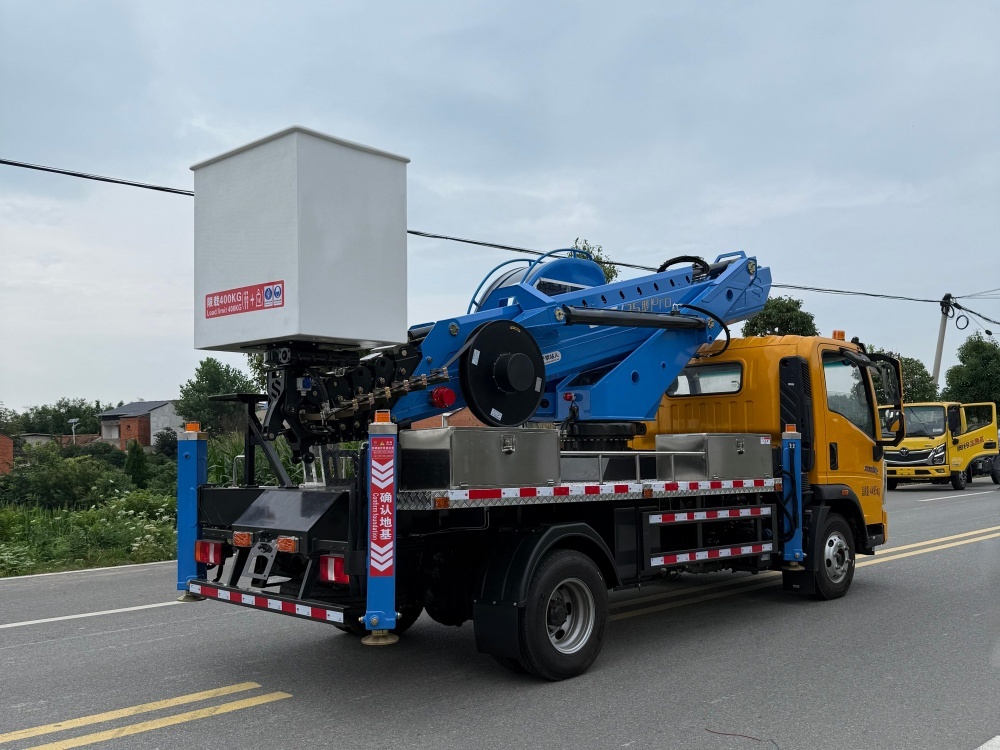

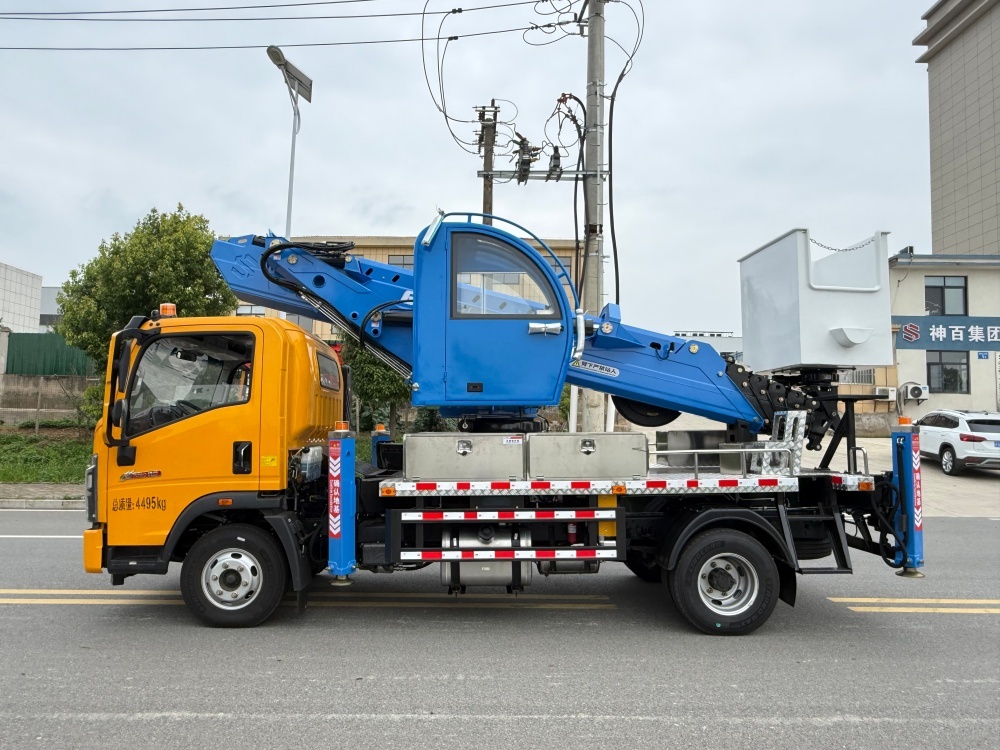

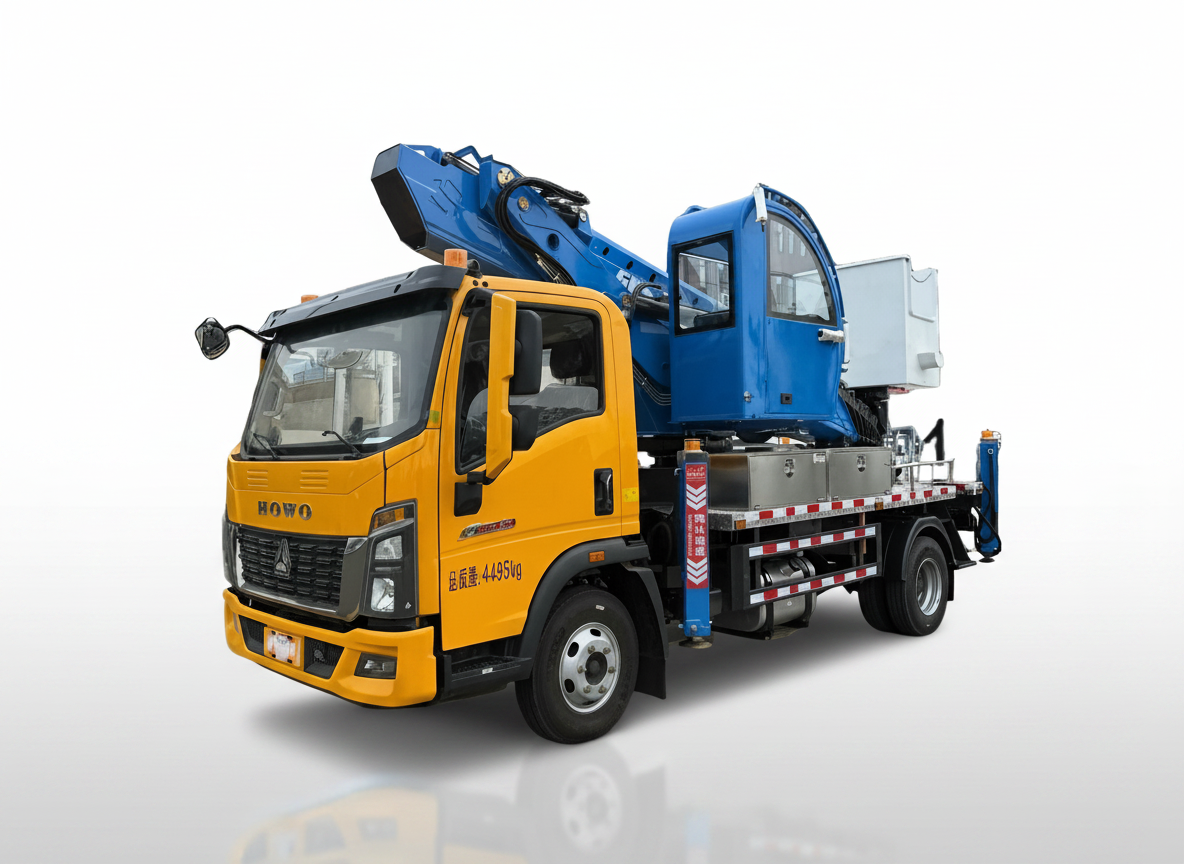

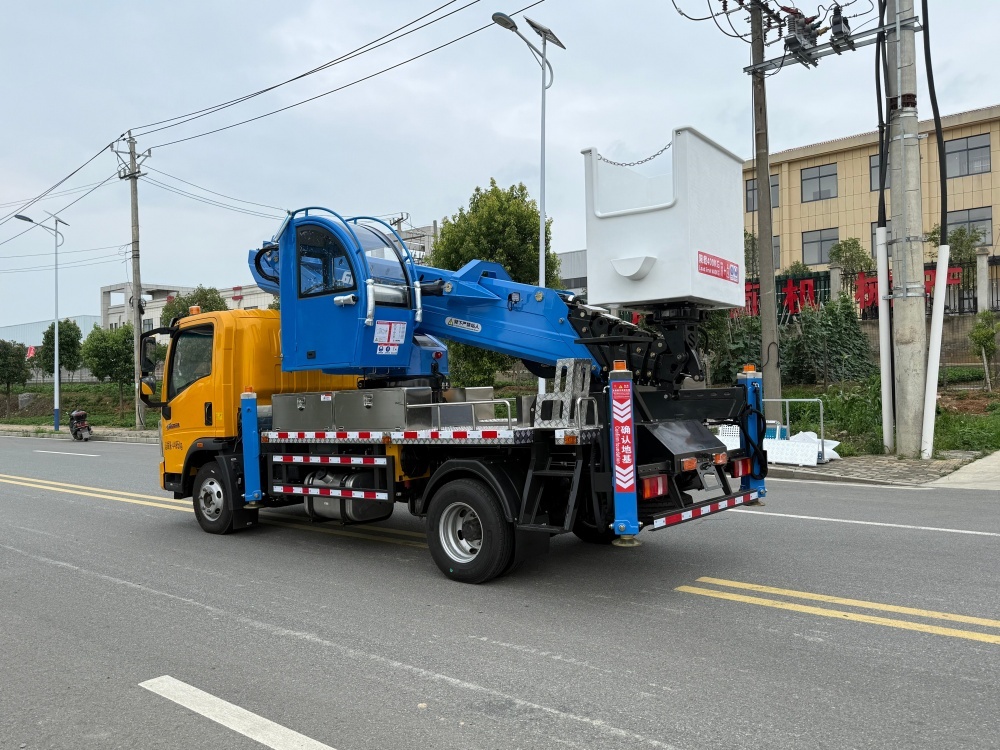

Sinotruk Howo 33.8-Meter Insulated Aerial Work Platform

Sinotruk Howo GKS35 Pro Aerial Work Platform, powered by a 160HP engine paired with a 6‑speed transmission for smooth power delivery. The platform features a custom insulated bucket with a rated load capacity of 200 kg. The 7‑section boom is equipped with a backup wire rope to ensure safe descent. Wireless remote control combined with an electro‑hydraulic proportional valve enables stepless speed control. X‑type outriggers are individually adjustable. Standard equipment includes a gravity sensor, anemometer, air conditioning, and ABS – ideal for construction, municipal, and utility/power line work at height.

• Brand: HOWO

• Engine Power：118 kW

• Transmission: Manual 6-speed transmission

• Drive Configuration: 4×2

• Fuel Type：Diesel

• Wheelbase：3280 mm

• Number of Axles：2

• Number of Tires: 6

• Tire Specification：700R16

• Maximum working height: 33.8 m

• Maximum working radius: 16.5m

• Rated platform load: 200kg

• Boom slewing angle: 360°

• Operating Mode：Remote/Manual

• Overall vehicle dimensions: 5994 × 2200 × 3150 mm

• Platform dimensions (external): 1140 × 850 × 1160 mm  (FRP material)

• Boom: 7 sections, with 6 synchronized telescopic sections; wire rope extension with spare wire rope

• Hydraulic system: Electro-hydraulic proportional valve, infinitely variable speed control, equipped with emergency power source

• Hydraulic outriggers: X-type, 4 outriggers, individually adjustable

• Walkway: Aluminum anti-skid walkway plates

• Safety devices: Upper-lower control interlock, emergency power source, bidirectional hydraulic balance valve, soft leg protection, radiator (oil cooler)
